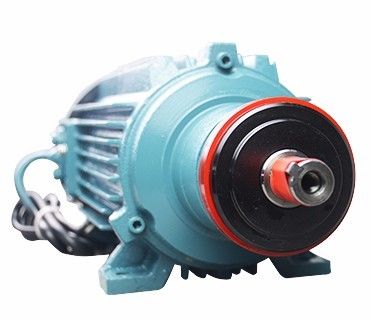

Induction 3 Phase AC Motor For Glass Processing Machine IEC 1.5kw 2.2kw 3kw
| Place of Origin | Shanghai |
|---|---|
| Brand Name | CDQC |
| Certification | CE |
| Model Number | UAMT |
| Price | Negotiate |
| Packaging Details | waterproof film & CDQC carton |
| Delivery Time | 15-20 work days |
| Payment Terms | T/T , L/C Negotiates |
| Supply Ability | 8000sets per month |
Product Details
| Rated Power | 1.5kW-3kW | Referenced Speed | 1500/3000 Rpm |
|---|---|---|---|
| Color | Blue | Rated Voltage | 415V/380V/240/230V/220V/120V/110V, 50HZ/60HZ |
| Function | Glass Processing | Speed | Constant Speed |
| Shape | Linear | ||
| High Light | three phase electric motor,3 phase induction machine,glass processing machine ac motor |
||
Product Description
UAMT80T series motor mainly applied to the glass processing industry, glass edge grinding, glass shaping filed.
UAMT series of grinding motor are used in glass processing machinery industry, imported bearings, wheel seat and motor development, using labyrinth sealing protection, which requires high speed, it can ensure the waterproof ability.:
1, Use high accuracy bearings, axial float & radial run-out ≤ 0.01mm, 100% products passed dynamic balance detection, ensured low vibration and low temperature rising.
2, High accuracy Integrated wheel head stand, Grinding wheel could direct install to the motor, cost saving and powerful.
3, Customized grinding head stand, easy to replace the grinding wheel.
4, Special water proof design sealing structure, 0.5mm labyrinth sealing, anti jamming design, with high temperature resistant materials, specialized for all kinds of working site.
5, The motor coil is dipped in vacuum environment, Class F insulation, longer lifespan.
6, Voltage: 380V/50HZ (Various voltage&frequency are available, 415V/380V/240/230V/220V/120V/110V, 50HZ/60HZ)
UAMT80T Series motor Technical Parameters:
|
Model |
Rated Power (Kw) |
Rated Voltage (V) |
Rated Frequency (HZ) |
Rated Current (A) |
Rated Torch (N.m) |
Rated Speed (rpm) |
Efficiency (η) |
Power Factor
|
TS/TN
|
TMAX/TN
|
IS/IN
|
Weight (Kg) |
| UAMT80T-2P-1.5 | 1.5 | 380 | 50 | 3.10 | 5.0 | 2830 | 81.9% | 0.89 | 3.3 | 3.3 | 6.6 | 26.0 |
| UAMT80T-2P-1.75 | 1.75 | 380 | 50 | 3.60 | 5.9 | 2830 | 82.3% | 0.90 | 3.1 | 3.0 | 6.6 | 26.1 |
| UAMT80T-2P-2.2 | 2.2 | 380 | 50 | 4.40 | 7.4 | 2840 | 84% | 0.91 | 3.6 | 3.4 | 7.4 | 28.0 |
| UAMT80T-2P-3.0 | 3.0 | 380 | 50 | 5.82 | 10.0 | 2850 | 84.3% | 0.93 | 3.8 | 3.4 | 6.4 | 30.0 |
| UAMT80T-4P-1.5 | 1.5 | 380 | 50 | 3.72 | 10.3 | 1385 | 77.5% | 0.77 | 3.3 | 2.7 | 5.3 | 26.5 |
|
Electric Input: AC/380V/50HZ/3PHASE(Customized Service is available) Protection Level: IP54/Working Mode: S1/Insulation Class: F/Cooling mode: IC411/Noise70/Vibration Level: N |
||||||||||||
