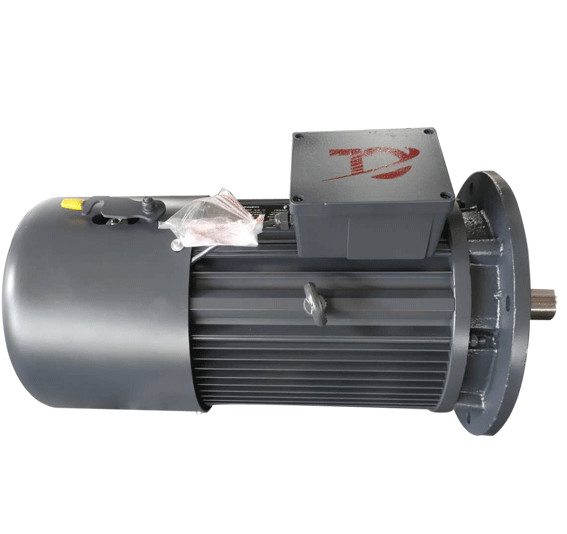

Elevator IP55 Aluminum 13kW 4 Pole Hoist Braking Motor

Place of Origin China Shanghai
Brand Name CDQC
Certification CCC CE
Model Number UAZEJ
Minimum Order Quantity 1set
Packaging Details waterproof film & CDQC carton
Delivery Time 30days
Payment Terms T/T , L/C other
Supply Ability 4000sets per month
Product Details
Color Black,gray,blue Mounted IMB5
Material Aluminum Working Mode S1
Protection Level IP55
High Light

4 Pole Hoist Braking Motor

,

13kW Hoist Braking Motor

,

IP55 Elevator Hoist Motor

Leave a Message
Product Description

UAZEJ Series Hosit Electromagnetic Braking Motor.



Product Description







Product introduction:



UAZEJ Series Hoist Motor mainly used for hoists elevators.



Variable frenquency electromagnetic braking motor for constructor is developed by SHANGHAI CDQC ELECTRIC CO.,LTD.



According to the special requirements of construction elevator market. It has a series of advantages, such as high efficiency



and energy saving, low speed and powerful, high speed and stable, fast acceleration and deceleration response, light weight,



 low noise,etc. The reference frenquency of the motor is 50Hz and 87Hz. It adopts f-level electromagnetic coil to ensure the



motor has stronger overload capacity. The brake adopts special brake of hoist to ensure the reliability of the brake.



Product Advantage:



1.The whole surface of the motor was successfully sprayed at one time, So the anti-corrosion ability was over 100 hours.



2.The wind cover of the motor adopts snap-on structure, which is stable and easy to take off.



3.The brake has a curved iron handle for more reliable storage when not in use.



4.Double Flange connection with each other.



UAZEJ Series motor Technical Parameters:



 Elevator IP55 Aluminum 13kW 4 Pole Hoist Braking Motor 0









      Model



 Rated power

(kW)

   Rated current

(A)



   Quota



 Rated speed

(r/min)



 Locked-rotor

 current

(A)



 Braking torque



(N.m)



 Overall length



(L)



UAZEJ132S-4



7.5 15



S3-25%



1395 95 125 590



UAZEJ132M1-4



11 23 S3-25% 1395 136 150 640



UAZEJ132M2-4



13 27 S3-25% 1395 172 180 710



 UAZEJ132L1-4



15 30 S3-25% 1395 195 180 710



 UAZEJ132L2-4



16.5 34.5 S3-25% 1395 225 220 710



 UAZEJ132L3-4



18.5 37.5 S3-25% 1395 245 220 710

Electric Input: AC220V/380V/50HZ/87HZ(Customized Service is available)

Protection Level: IP55

Working Mode: S1

Ambient temperature: -15°~40°
