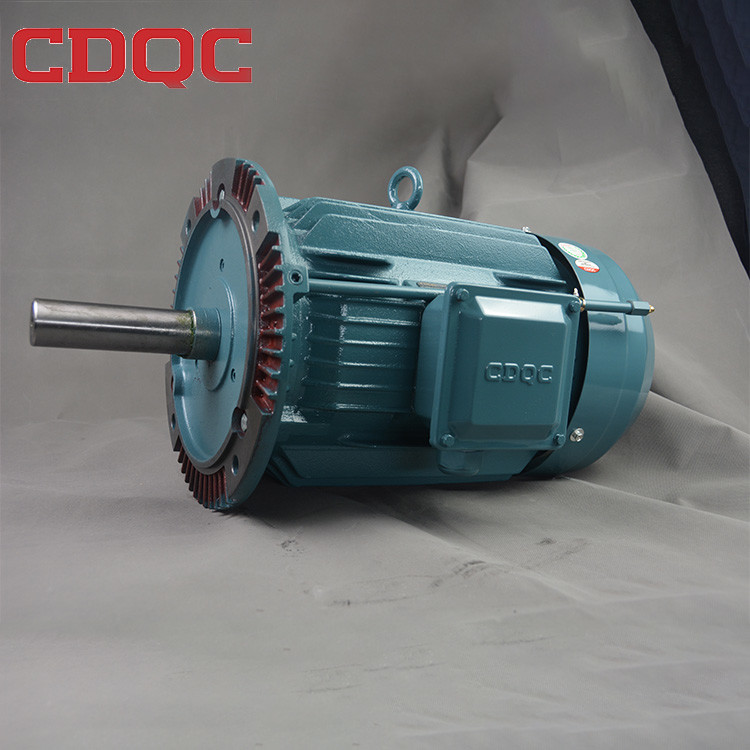

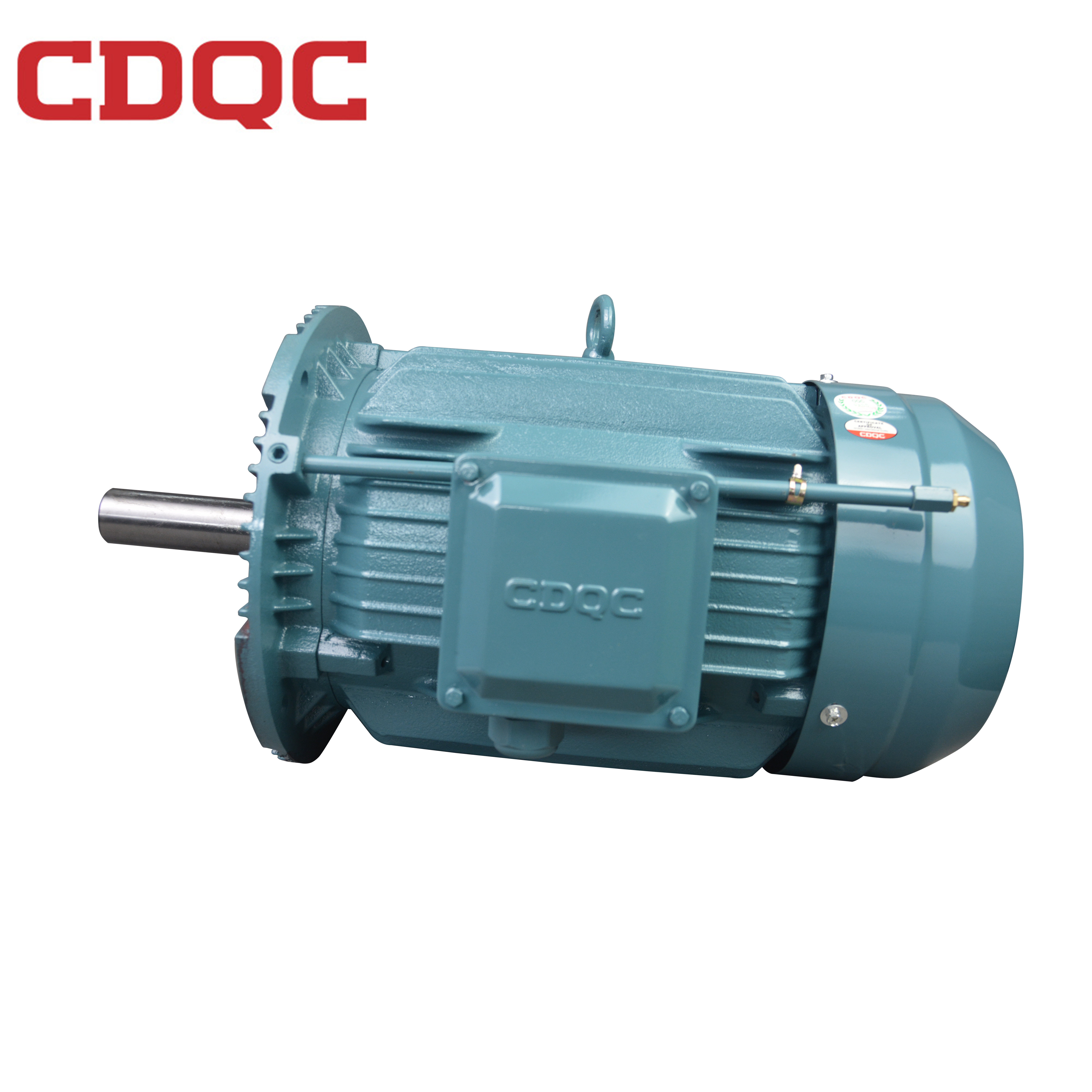

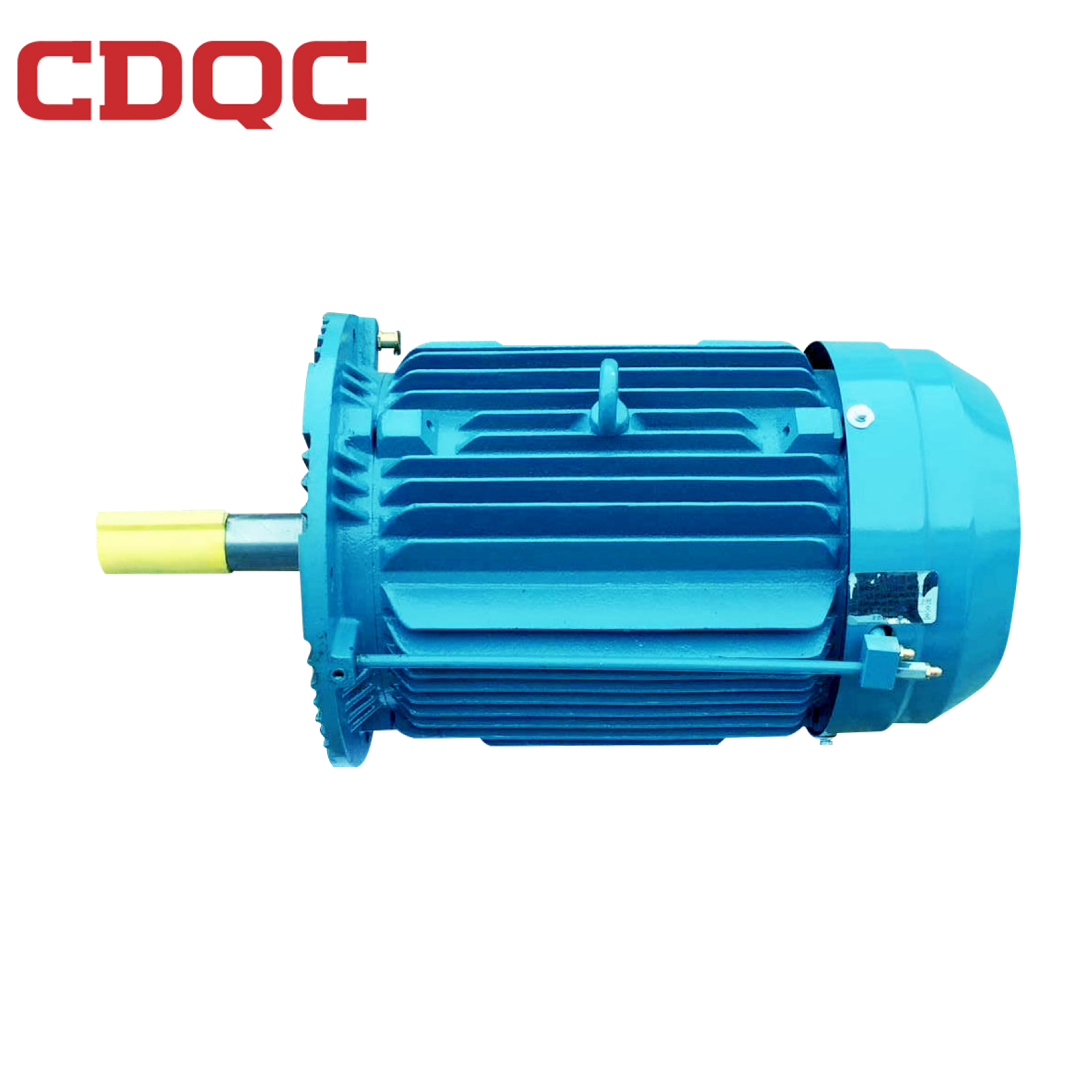

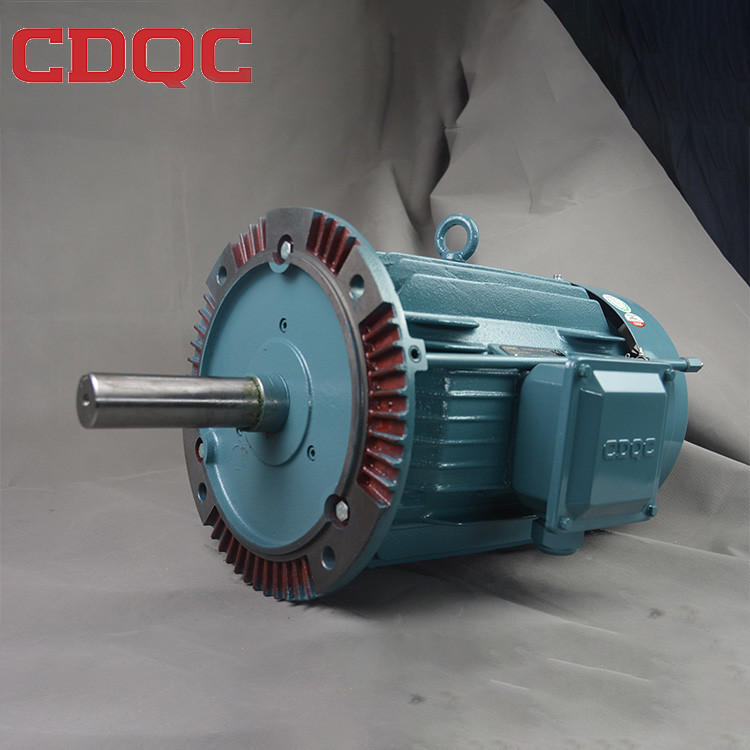

Universal Enclosed Industrial AC Motor Linear Shape Better Overload Capacity
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CDQC |
| Model Number | UAGW |
| Price | Negotiate |
| Packaging Details | waterproof film & CDQC carton. |
| Supply Ability | 150000 Set/Sets per Month |
Product Details
| Color | As Required | Usage | Universal |
|---|---|---|---|
| Function | Driving | Phase | Three Phase |
| Speed | Constant Speed | Shape | Linear |
| Power | AC | Protect Feature | Enclosed And Waterproof |
| Structure | Other | Port | Shanghai |
| High Light | industrial induction motor,industrial electric motors |
||
Product Description
Universal Enclosed Industrial AC Motor Linear Shape Better Overload Capacity
Product Description
Product introduction:
1 The motor coil is dipped in vacuum environment, Class F insulation, longer lifespan.
2 Convenient oil replenish structure, unique oil feeding hose. Special designed for high temperature working environment.
3 Commonality, good applicability.
4 Special enhanced spindle&bearings, more stronger, Better overload capacity.
5 Voltage: 380V/50HZ (Various voltage&frequency are available, 415V/380V/240/230V/220V/120V/110V, 50HZ/60HZ)
UAGW series high temperature resistance motor mainly applied to the dying&printing processing industry, such as stretch setting machine, decorating machine,printing machine.
UAGW Series motor Technical Parameters:
|
Model |
Rated Power (Kw) |
Rated Voltage (V) |
Rated Frequency (HZ) |
Rated Current (A) |
Rated Torch (N.m) |
Rated Speed (rpm) |
Efficiency (η) |
Power Factor |
TS / TN
|
TMAX / TN
|
IS / IN
|
Noise
|
Weight
|
|
112-4P |
4 |
380 |
50 |
8.54 |
26.3 |
1450 |
85.4% |
0.83 |
2.3 |
2.3 |
7.5 |
65 |
45 |
|
132-4P |
5.5 |
380 |
50 |
11.4 |
36.2 |
1450 |
86.1% |
0.86 |
2.0 |
2.3 |
7.5 |
71 |
60 |
|
132-4P |
7.5 |
380 |
50 |
14.9 |
49.4 |
1450 |
87.3% |
0.88 |
2.0 |
2.3 |
7.3 |
71 |
73 |
|
132-4P |
9.5 |
380 |
50 |
18.7 |
62.5 |
1450 |
86.9% |
0.89 |
2.0 |
2.3 |
7.3 |
71 |
82 |
|
160-4P |
11 |
380 |
50 |
21.5 |
72.5 |
1450 |
88% |
0.85 |
2.0 |
2.3 |
7.4 |
73 |
116 |
|
Electric Input: AC/380V/50HZ/3PHASE(Customized Service is available) Protection Level: IP56/Working Mode: S1/Insulation Class: F/Cooling mode: IC416/Vibration Level |
|||||||||||||
