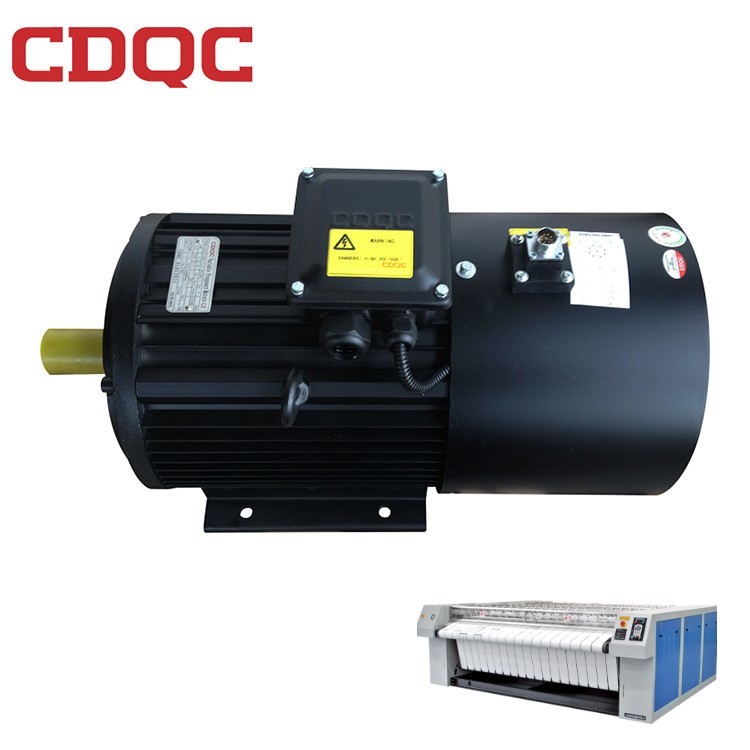

Stable Variable Speed AC Motor High Overload Capacity Compact Structure

Place of Origin Shanghai, China
Brand Name CDQC
Certification CE
Model Number UABPD
Price Negotiate
Packaging Details waterproof film & CDQC carton.
Supply Ability 150000 Set/Sets per Month
Product Details
Color As Required Usage Universal
Function Driving Phase Three Phase
Speed Constant Speed Shape Linear
Power AC Protect Feature Enclosed And Waterproof
Structure Other Port Shanghai
High Light

vsd electric motor

,

adjustable speed electric motor

,

class f variable frequency motor

Leave a Message
Product Description
Stable Variable Speed AC Motor High Overload Capacity Compact Structure
Product introduction:

UABPD Series motor which is specially designed is a frequency conversion step less variable speed motor used with a synchronous frequency converter. It can be operated under variable frequency power source. With high strength magnet steel inserted in the rotor, it belongs to permanent synchronous motor. It has two kinds: with encoder and without encoder. Matched with intelligent control system, this series motor constitutes intelligent mechanical- electrical integration equipment. The motor adopts rare earth permanent magnetic material, and it has features of strong magnet, large over-load torque of starting and running, low current, wide working frequency range. This series motor is used for step less speed and can replace YVP, YCT series motor. The motor runs well with low speed and is controlled accurately. We supply dedicated control cabinet for this series motor, and can also be customized. Matched with control system, the motor can achieve variable frequency soft staring which can prolong the service life of the mechanical equipment, decrease maintenance, increase reliability of the facility.

Product Features:
1, Universality- IEC Standard Variable Frequency motors,
2, High efficiency-Specialized for washing machine, powerful torque, Low speed.
3, Stable-adopted mature technology design, classic models.
4, High overload capacity. 150% max to 1 min.
5, Compact structure, smaller size.
6, Wide adjustment range of constant power.
7, Reliable quality, Class F insulation, IP54 Protection level.

Product Specifications
Rated Power: 0.37Kw-30Kw
IEC Standard
Reference speed: 750/1000/1500/3000/4500(r/min)
Stable design, Insulation F grade, IP54 Protection level.
Max Constant power: Minimum Constant power =1:3~1:4
Optional Parts: Encoder, Thermal protector





UABPD Series motor Technical Parameters:


Model90L-4P100L-4P100L-6P112M-6P132S-4P132M-4P160M-4P160L-4P160L-4P180M-4P200L-6P
Rated Power1.52.21.52.2345.57.5111522
Rated Curren3.854.56.210151823323855
Rated Torque8.512.412.718.640.3553.872.9599.48110191210
Referenced Speed1800120075010007501500
Rated Voltage380330330380
Control ModeV/F, Vector control
Overload Capacity150%, 1 min
Insulation LevelClass F Insulation
Cooling ModeIC416
Vibration LevelR
