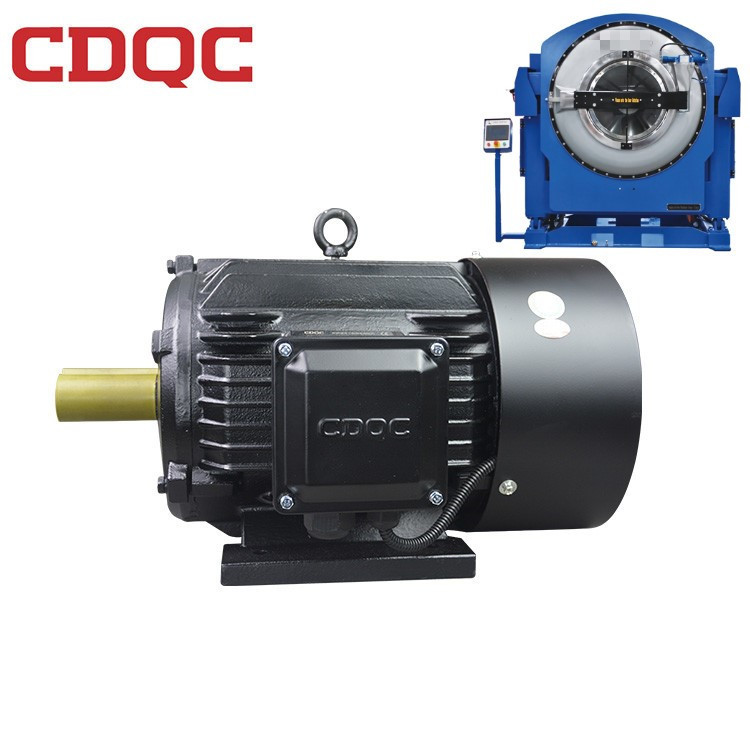

Three Phase Variable Speed AC Motor 30kw UABPD Series High Efficiency

Place of Origin Shanghai, China
Brand Name CDQC
Certification CE
Price Negotiate
Packaging Details waterproof film & CDQC carton.
Supply Ability 150000 Set/Sets per Month
Product Details
Color As Required Usage Universal
Function Driving Phase Three Phase
Speed Constant Speed Shape Linear
Power AC Protect Feature Enclosed And Waterproof
Structure Other Port Shanghai
High Light

adjustable speed electric motor

,

multi speed electric motor

Leave a Message
Product Description
Three Phase Variable Speed AC Motor 30kw UABPD Series High Efficiency
PRODUCT INTRODUCTION:

1. Frame size:H56-355;
2. Power:0.12-315Kw;
3. Voltage: 380V;

4. Rated Frequency: 50 Hz / 60 Hz;

5. Poles: 2 / 4 / 6 / 8 / 10

6. Speed: 590 -2980 r/min

7. Ambient Temperature: -15°C-40°C

8. Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;

9. Mounting: B3; B5; B35; B14; B34;

10. Current: 1.5-465 A (AC);

11. Duty: continuous (S1);

12. Insulation Class: B;

13. Protection Class: IP44,IP54,IP55;



UABPD Series motors specialized apply for industry of industrial washing machine, standard variable frequency motor, stable, universality, cost-efficiency.



Product Features:

1, Universality- IEC Standard Variable Frequency motors,

2, High efficiency-Specialized for washing machine, powerful torque, Low speed.

3, Stable-adopted mature technology design, classic models.

4, High overload capacity. 150% max to 1 min.

5, Compact structure, smaller size.

6, Wide adjustment range of constant power.

7, Reliable quality, Class F insulation, IP54 Protection level.



Product Specifications

Rated Power: 0.37Kw-30Kw

IEC Standard

Reference speed: 750/1000/1500/3000/4500(r/min)

Stable design, Insulation F grade, IP54 Protection level.

Max Constant power: Minimum Constant power =1:3~1:4

Optional Parts: Encoder, Thermal protector



UABPD Series motor Technical Parameters:



Model 90L-4P 100L-4P 100L-6P 112M-6P 132S-4P 132M-4P 160M-4P 160L-4P 160L-4P 180M-4P 200L-6P
Rated Power 1.5 2.2 1.5 2.2 3 4 5.5 7.5 11 15 22
Rated Curren 3.8 5 4.5 6.2 10 15 18 23 32 38 55
Rated Torque 8.5 12.4 12.7 18.6 40.35 53.8 72.95 99.48 110 191 210
Referenced Speed 1800 1200 750 1000 750 1500
Rated Voltage 380 330 330 380
Control Mode V/F, Vector control
Overload Capacity 150%, 1 min
Insulation Level Class F Insulation
Cooling Mode IC416
Vibration Level R
