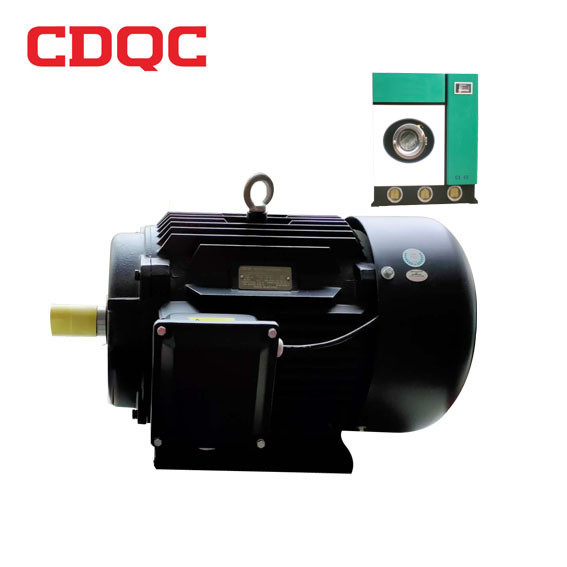

Stable Variable Frequency Induction Washing Motor 330/380V Custom YVF with Encoder

Place of Origin Shanghai, China
Brand Name CDQC
Certification CCC, CE
Model Number UABPD
Price Negotiate
Packaging Details waterproof film & CDQC carton.
Supply Ability 150000 Set/Sets per Month
Product Details
Type Induction Motor Frequency 25Hz 50Hz 60Hz
Protect Feature Waterproof, Enclosed And Waterproof Phase Three-phase, Three Phase
AC Voltage 220-240 V 330/380V Efficiency IE 3
Usage Washing Machine Color Customers' Request
Warranty 18 Months Speed Constant Speed
Duty S1 (continuous) Power 0.75KW-30KW
Protection Class IP54 Housing Cast Iron
Port Shanghai
High Light

high frequency induction motor


vfd induction motor

Leave a Message
Product Description
Variable FREQUENCE INDUCTION AC Motor UABPD Series IP54 Protection Level


UABPD Series motors specialized apply for industry of industrial washing machine, standard variable frequency motor, stable, universality, cost-efficiency.


Product Features:

1, Universality- IEC Standard Variable Frequency motors,

2, High efficiency-Specialized for washing machine, powerful torque, Low speed.

3, Stable-adopted mature technology design, classic models.

4, High overload capacity. 150% max to 1 min.

5, Compact structure, smaller size.

6, Wide adjustment range of constant power.

7, Reliable quality, Class F insulation, IP54 Protection level.


Product Specifications

Rated Power: 0.37Kw-30Kw

IEC Standard

Reference speed: 750/1000/1500/3000/4500(r/min)

Stable design, Insulation F grade, IP54 Protection level.

Max Constant power: Minimum Constant power =1:3~1:4

Optional Parts: Encoder, Thermal protector




UABPD Series motor Technical Parameters:


Model 90L-4P 100L-4P 100L-6P 112M-6P 132S-4P 132M-4P 160M-4P 160L-4P 160L-4P 180M-4P 200L-6P
Rated Power 1.5 2.2 1.5 2.2 3 4 5.5 7.5 11 15 22
Rated Curren 3.8 5 4.5 6.2 10 15 18 23 32 38 55
Rated Torque 8.5 12.4 12.7 18.6 40.35 53.8 72.95 99.48 110 191 210
Referenced Speed 1800 1200 750 1000 750 1500
Rated Voltage 380 330 330 380
Control Mode V/F, Vector control
Overload Capacity 150%, 1 min
Insulation Level Class F Insulation
Cooling Mode IC416
Vibration Level R
