220v 380v Asynchronous Induction Motor Water Proof Sealing Structure
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CDQC |
| Price | Negotiate |
| Packaging Details | waterproof film & CDQC carton. |
| Supply Ability | 150000 Set/Sets per Month |
Product Details
| Color | As Required | Usage | Universal |
|---|---|---|---|
| Function | Driving | Phase | Three Phase |
| Speed | Constant Speed | Shape | Linear |
| Power | AC | Protect Feature | Enclosed And Waterproof |
| Structure | Other | Port | Shanghai |
| High Light | high speed asynchronous motor,three phase asynchronous motor |
||
Product Description

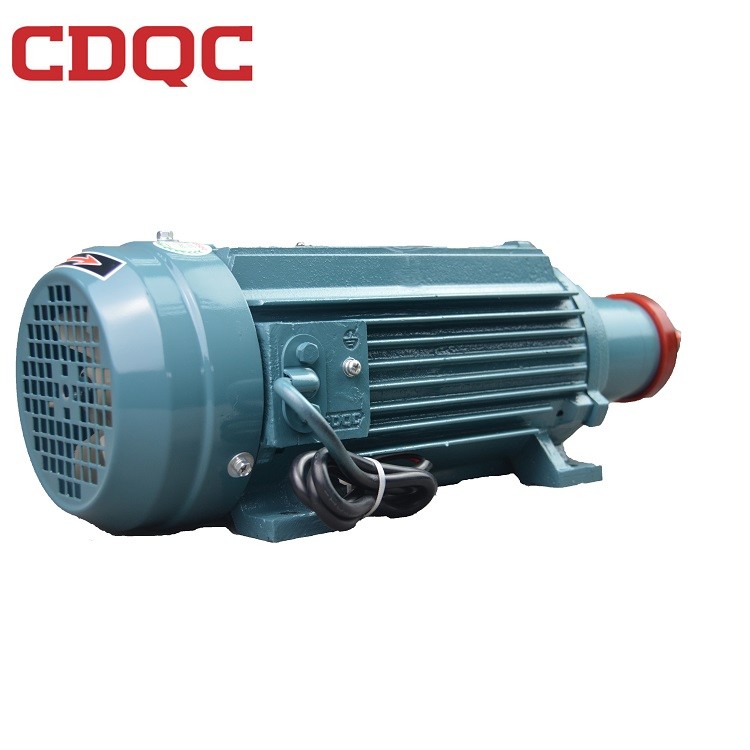

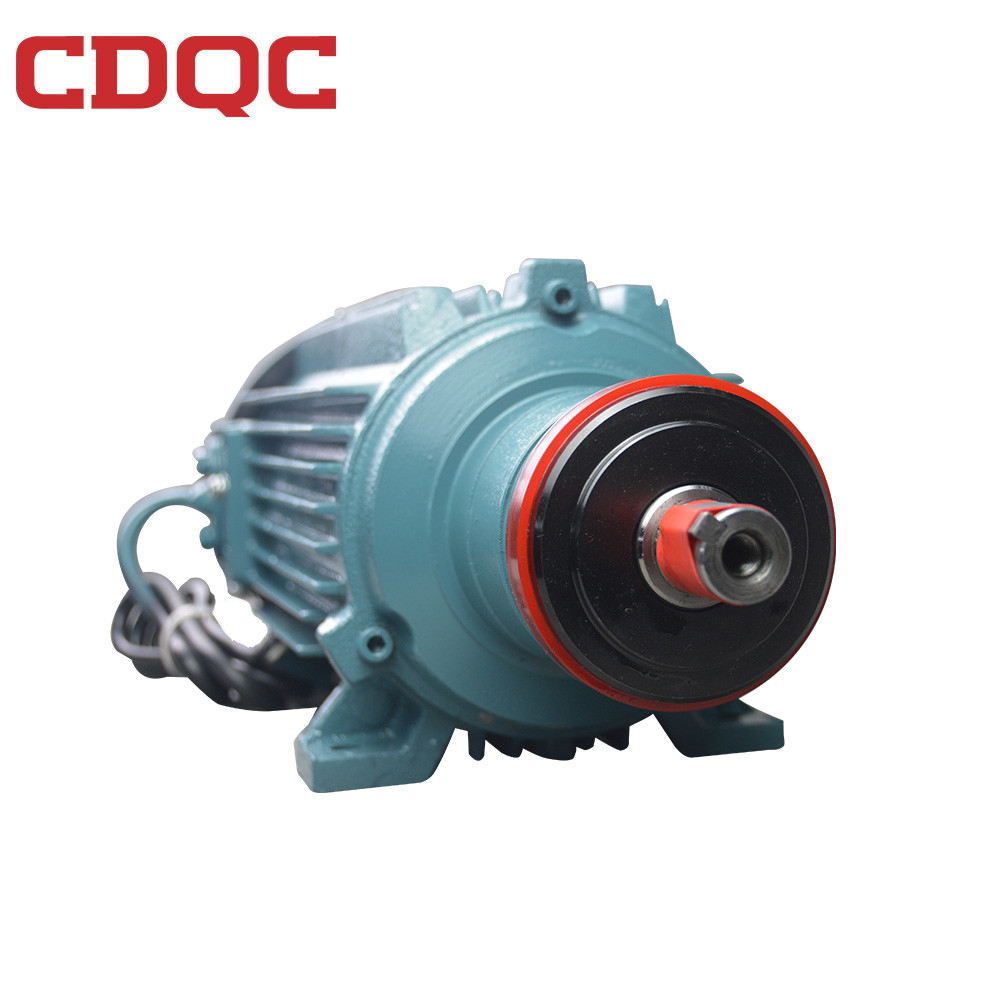

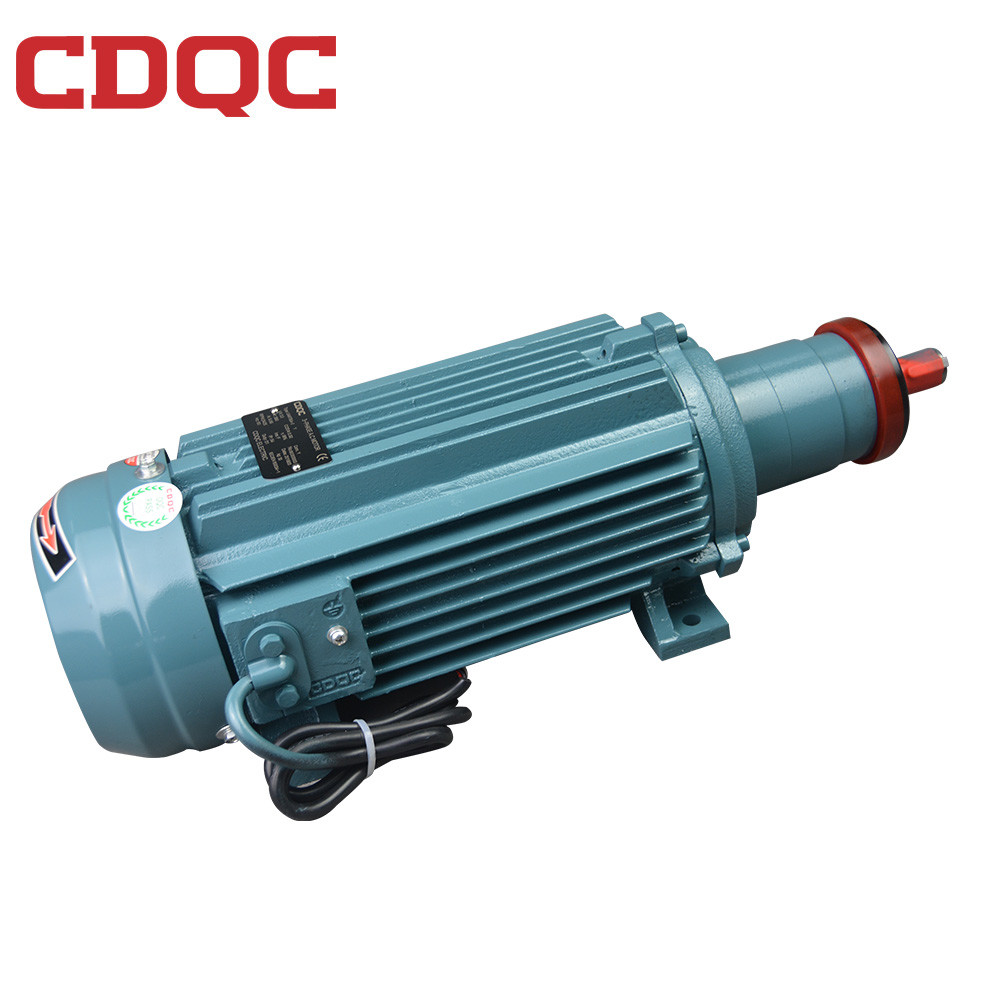

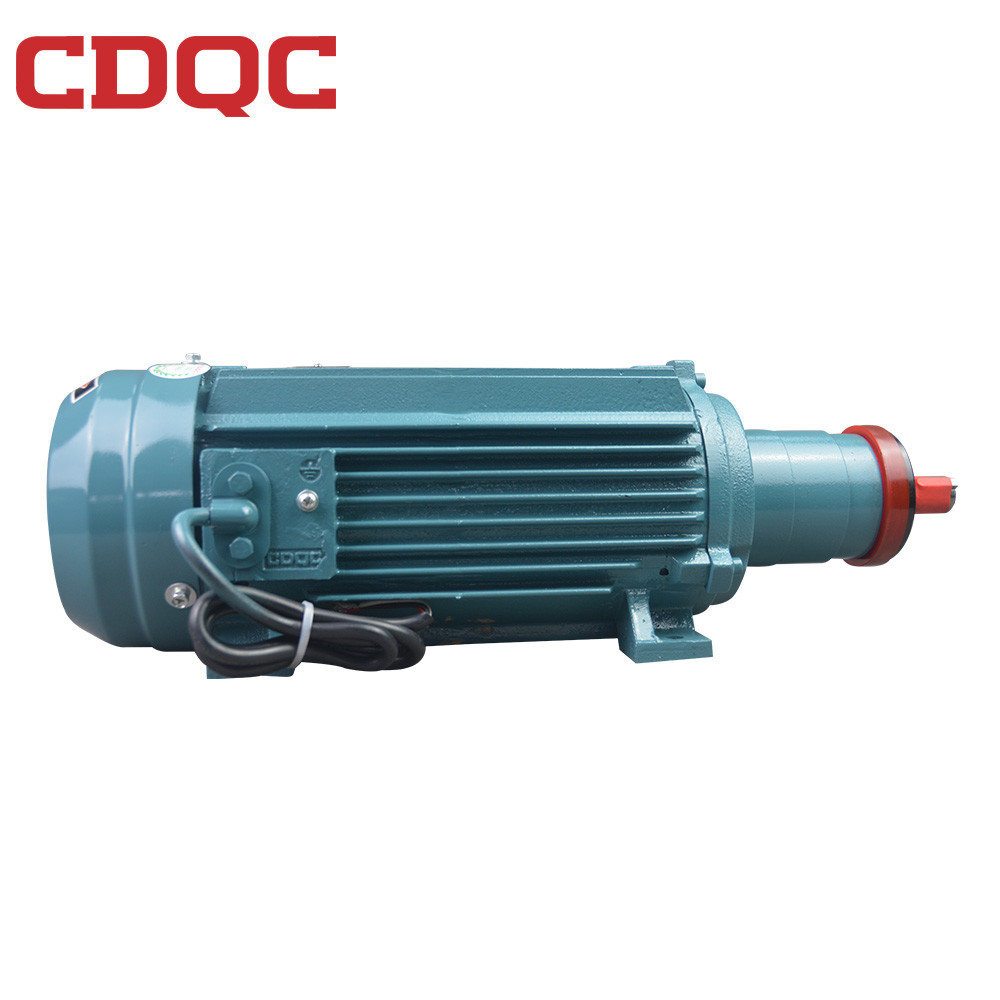

220v 380v Asynchronous Induction Motor Water Proof Sealing Structure
Product Description
Product introduction:
UAMT80A series motor mainly applied to the glass processing industry, glass edge grinding, glass shaping filed.
1, Use high accuracy bearings, axial float & radial run-out ≤ 0.01mm, 100% products passed dynamic balance detection, ensured low vibration and low temperature rising.
2, Grinding head direct connected to the motor, powerful!
3, The motor coil is dipped in vacuum environment, Class F insulation, longer lifespan.
4, Special water proof design sealing structure, with high temperature resistant materials, specialized for all kinds of working site.
5, Voltage: 380V/50HZ (Various voltage&frequency are available, 415V/380V/240/230V/220V/120V/110V, 50HZ/60HZ)
UAMT80A Series motor Technical Parameters:
|
Model |
Rated Power (Kw) |
Rated Voltage (V) |
Rated Frequency (HZ) |
Rated Current (A) |
Rated Torch (N.m) |
Rated Speed (rpm) |
Efficiency (η) |
Power Factor
|
TS / TN
|
TMAX / TN
|
IS / IN
|
Weight (Kg) |
|
UAMT80A-2P-1.5 |
1.5kw |
380V |
50HZ |
3.10A |
5.0 |
2830r /min |
81.9% |
0.89 |
3.3 |
3.3 |
6.6 |
26kg |
|
UAMT80A-2P-1.75 |
1.75kw |
380V |
50HZ |
3.60A |
5.9 |
2830r /min |
82.3% |
0.90 |
3.1 |
3.0 |
6.6 |
26.1kg |
|
UAMT80A-2P-2.2 |
2.2kw |
380V |
50HZ |
4.40A |
7.4 |
2840r /min |
84% |
0.91 |
3.6 |
3.4 |
7.4 |
28.0kg |
|
UAMT80A-2P-3.0 |
3.0kw |
380V |
50HZ |
5.82A |
10.0 |
2850r /min |
84.3% |
0.93 |
3.8 |
3.4 |
6.4 |
30.0kg |
|
UAMT80A-4P-1.5 |
1.5kw |
380V |
50HZ |
3.72A |
10.3 |
1385r /min |
77.5% |
0.77 |
3.3 |
2.7 |
5.3 |
26.5kg |
|
Electric Input: AC/380V/50HZ/3PHASE(Customized Service is available) Protection Level: IP54/Working Mode: S1/Insulation Class: F/Cooling mode: IC411/Noise70/Vibration Level:N |
||||||||||||
