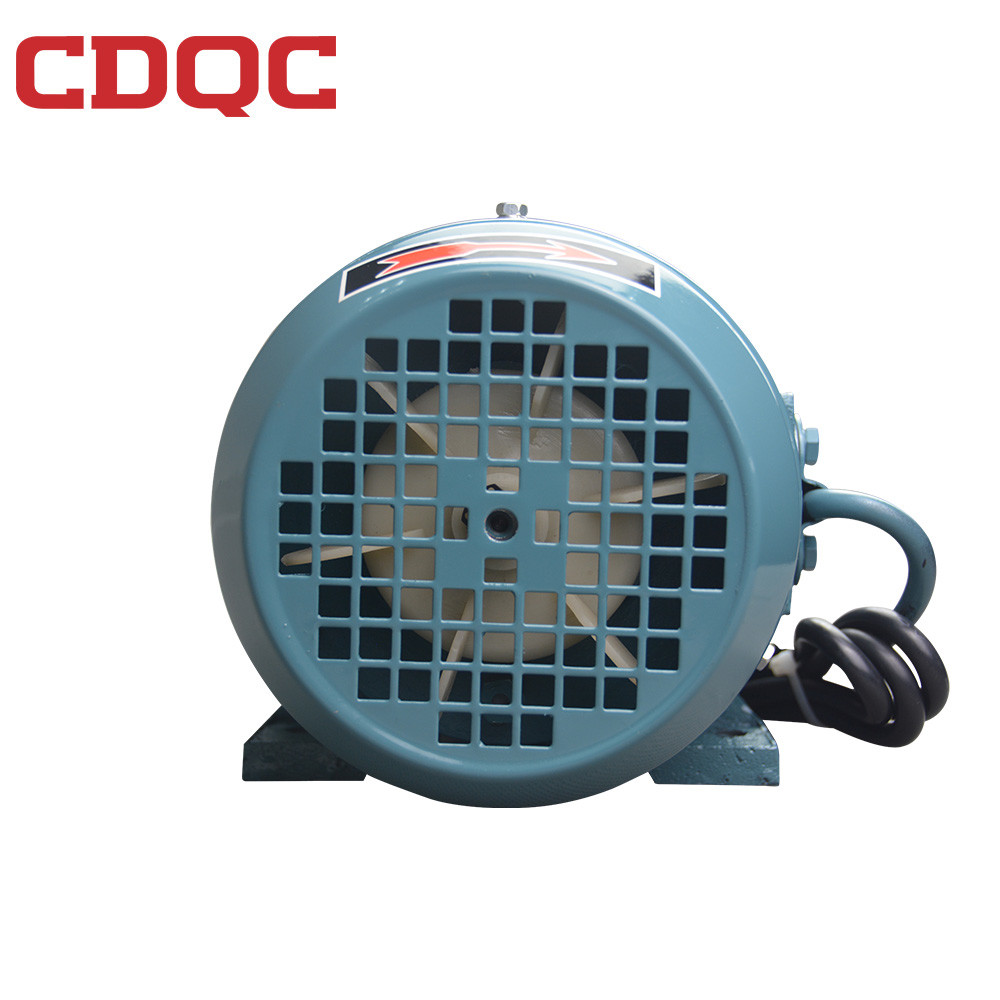

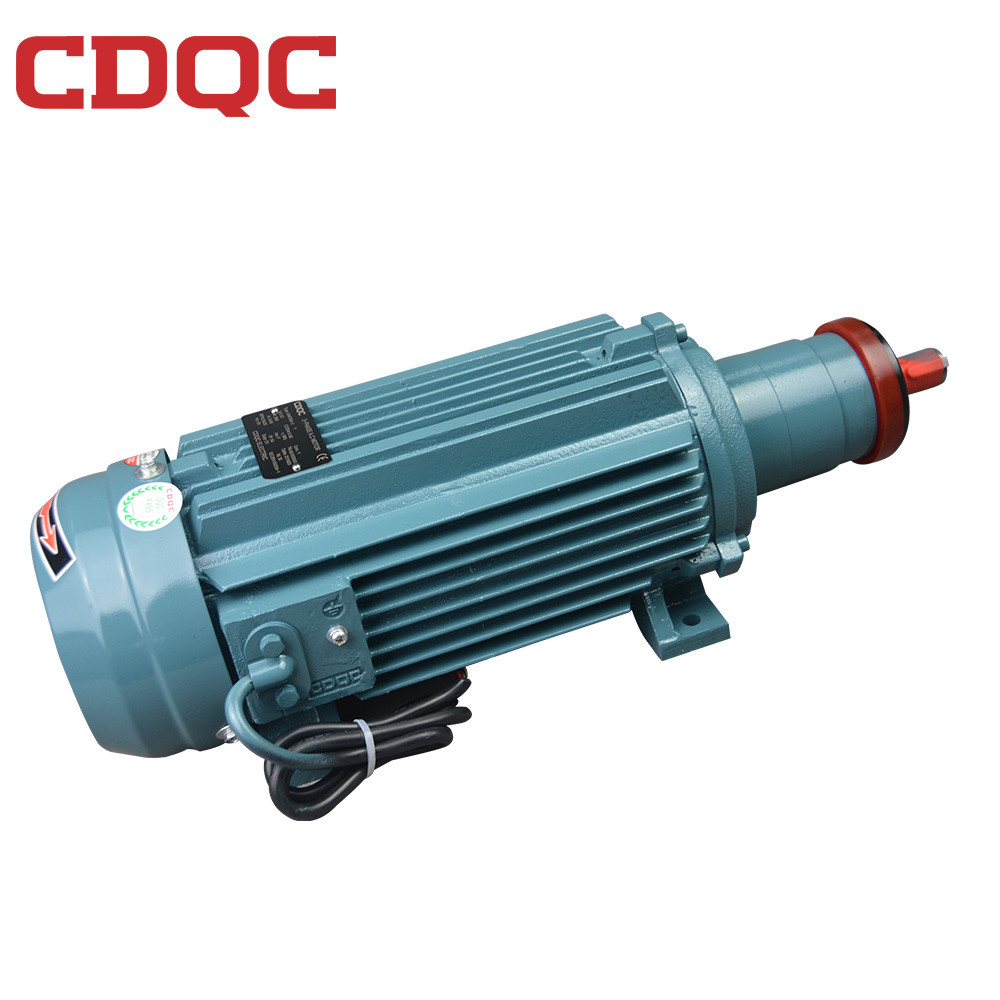

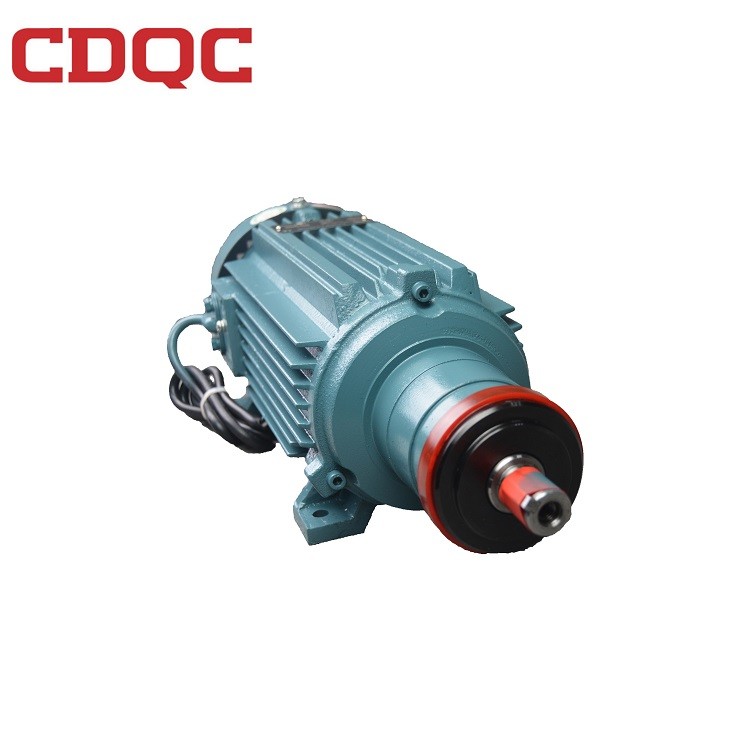

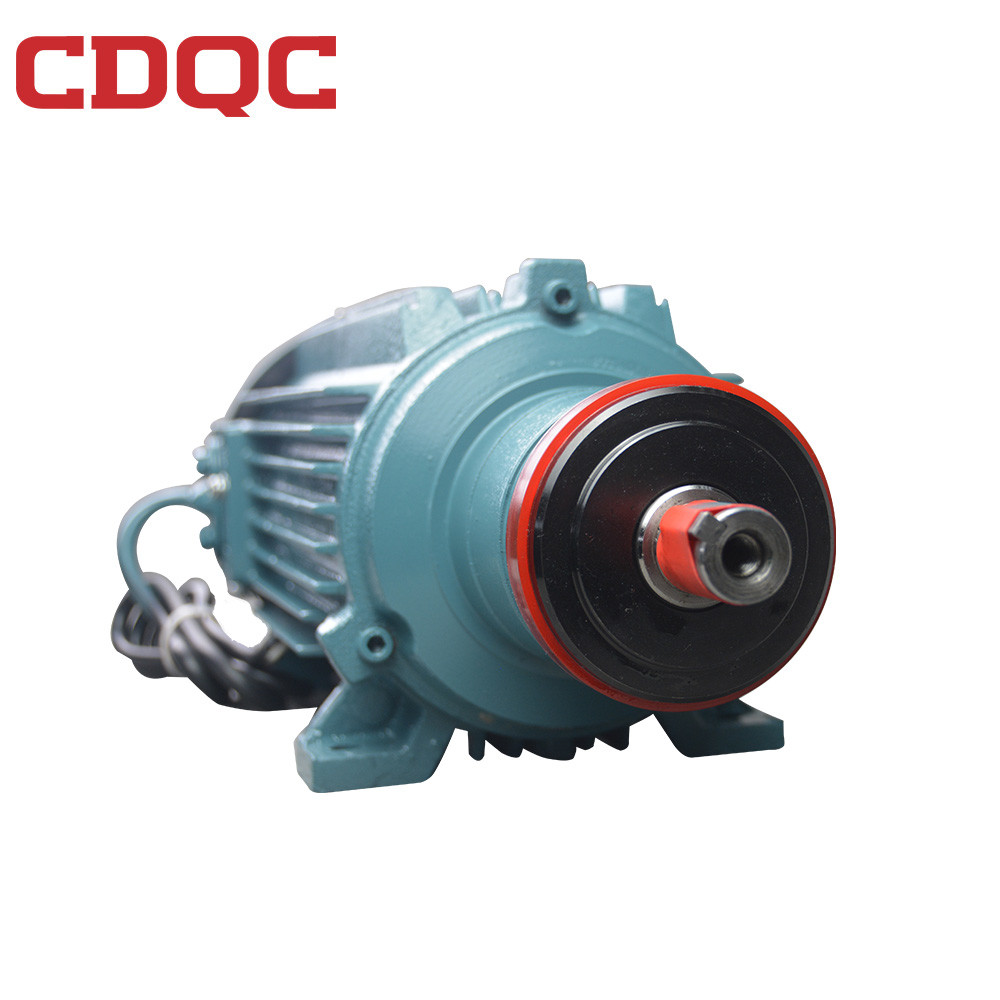

Family Size Motor Asynchronous Induction Motor High Accuracy Bearings
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CDQC |
| Price | Negotiate |
| Packaging Details | waterproof film & CDQC carton. |
| Supply Ability | 150000 Set/Sets per Month |
Product Details
| Color | As Required | Usage | Universal |
|---|---|---|---|
| Function | Driving | Phase | Three Phase |
| Speed | Constant Speed | Shape | Linear |
| Power | AC | Protect Feature | Enclosed And Waterproof |
| Structure | Other | Port | Shanghai |
| High Light | ac asynchronous motor,high speed asynchronous motor |
||
Product Description
Product Description
Product introduction:
UAMT80A series motor mainly applied to the glass processing industry, glass edge grinding, glass shaping filed.
1, Use high accuracy bearings, axial float & radial run-out ≤ 0.01mm, 100% products passed dynamic balance detection, ensured low vibration and low temperature rising.
2, Grinding head direct connected to the motor, powerful!
3, The motor coil is dipped in vacuum environment, Class F insulation, longer lifespan.
4, Special water proof design sealing structure, with high temperature resistant materials, specialized for all kinds of working site.
5, Voltage: 380V/50HZ (Various voltage&frequency are available, 415V/380V/240/230V/220V/120V/110V, 50HZ/60HZ)
UAMT80A Series motor Technical Parameters:
|
Model |
Rated Power (Kw) |
Rated Voltage (V) |
Rated Frequency (HZ) |
Rated Current (A) |
Rated Torch (N.m) |
Rated Speed (rpm) |
Efficiency (η) |
Power Factor
|
TS / TN
|
TMAX / TN
|
IS / IN
|
Weight (Kg) |
|
UAMT80A-2P-1.5 |
1.5kw |
380V |
50HZ |
3.10A |
5.0 |
2830r /min |
81.9% |
0.89 |
3.3 |
3.3 |
6.6 |
26kg |
|
UAMT80A-2P-1.75 |
1.75kw |
380V |
50HZ |
3.60A |
5.9 |
2830r /min |
82.3% |
0.90 |
3.1 |
3.0 |
6.6 |
26.1kg |
|
UAMT80A-2P-2.2 |
2.2kw |
380V |
50HZ |
4.40A |
7.4 |
2840r /min |
84% |
0.91 |
3.6 |
3.4 |
7.4 |
28.0kg |
|
UAMT80A-2P-3.0 |
3.0kw |
380V |
50HZ |
5.82A |
10.0 |
2850r /min |
84.3% |
0.93 |
3.8 |
3.4 |
6.4 |
30.0kg |
|
UAMT80A-4P-1.5 |
1.5kw |
380V |
50HZ |
3.72A |
10.3 |
1385r /min |
77.5% |
0.77 |
3.3 |
2.7 |
5.3 |
26.5kg |
|
Electric Input: AC/380V/50HZ/3PHASE(Customized Service is available) Protection Level: IP54/Working Mode: S1/Insulation Class: F/Cooling mode: IC411/Noise70/Vibration Level:N |
||||||||||||
COMPANY INTRODUCTION
CDQC specializes in the research and development, manufacturing, sales and service of various types of motors, covering an area of 20,000 square meters and having nearly 200 formal staff. We have a professional research and development team. They are constantly committed to the development and innovation of motor technology and our staff accepting serious training can use advanced motor testing platform and other professional testing equipment so that the quality of products have greatly improved. We have to ensure to provide customers with the highest quality and the most credible motor for their machine. At present, CDQC has developed into a new energy transmission base integrating materials, industry and trade.
