Low Noise Enclosed Induction Electric Motor Water Proof Sealing Structure
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CDQC |
| Price | Negotiate |
| Packaging Details | waterproof film & CDQC carton. |
| Supply Ability | 150000 Set/Sets per Month |
Product Details
| Color | As Required | Usage | Universal |
|---|---|---|---|
| Function | Driving | Phase | Three Phase |
| Speed | Constant Speed | Shape | Linear |
| Power | AC | Protect Feature | Enclosed And Waterproof |
| Structure | Other | Port | Shanghai |
| High Light | high voltage induction motor,960 rpm induction motor |
||
Product Description

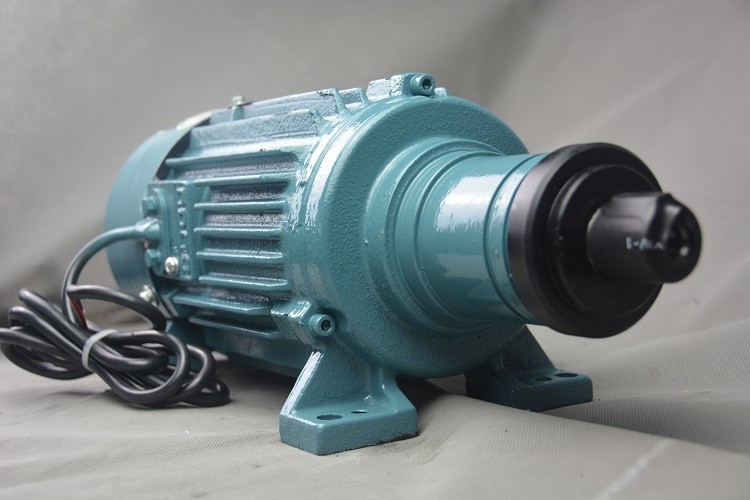

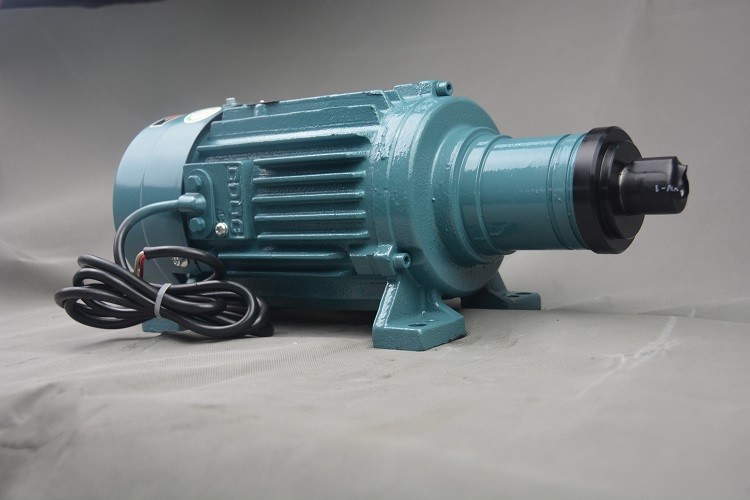

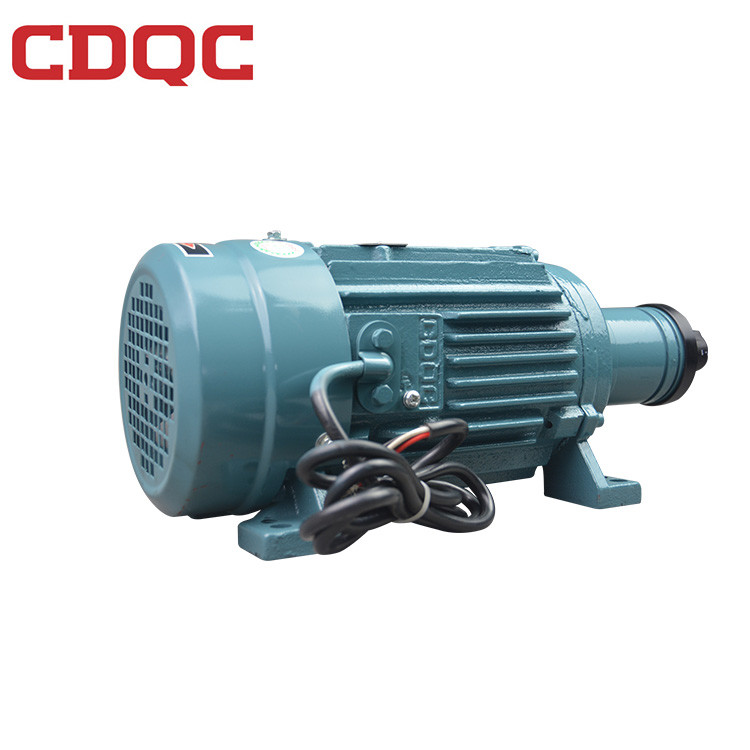

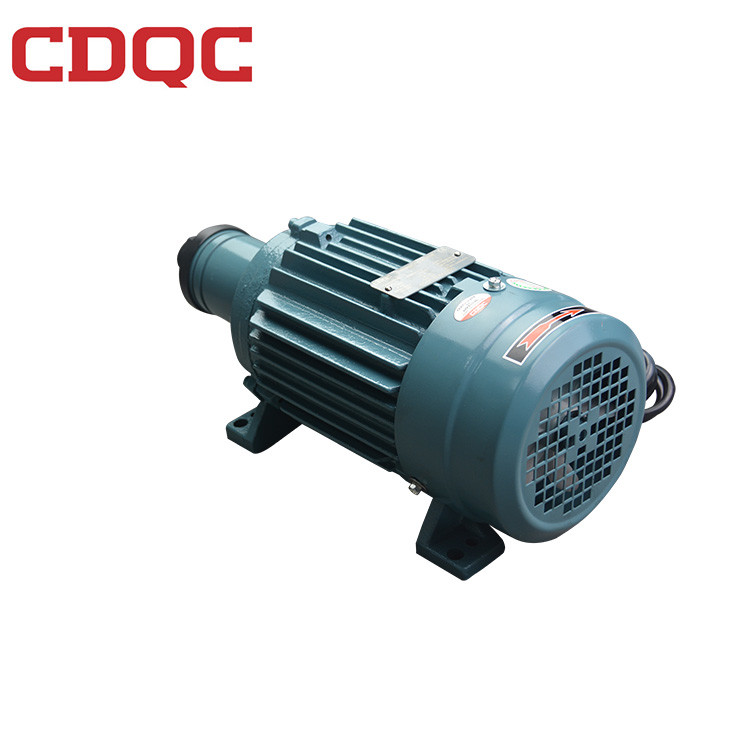

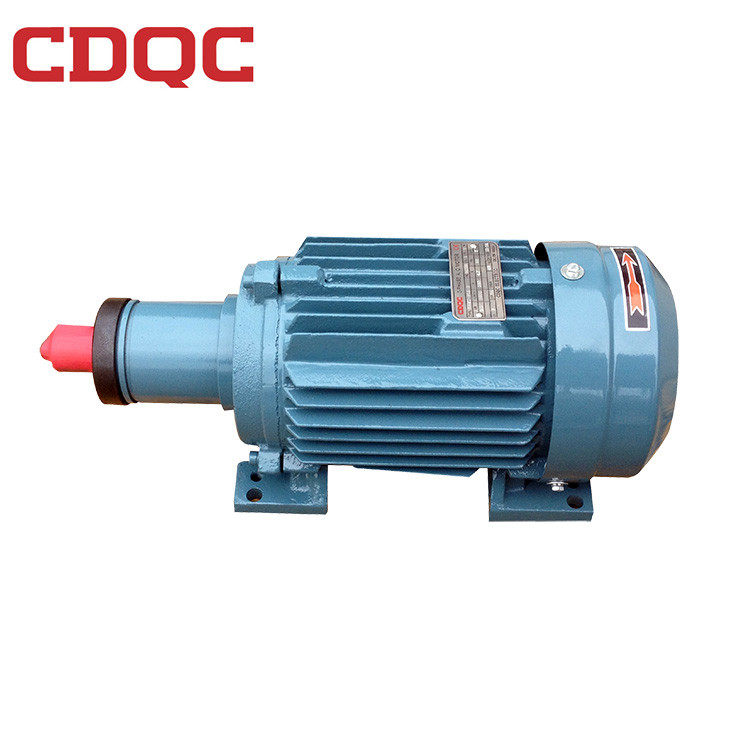

Low Noise Enclosed CNC Spindle Motor Water Proof Sealing Structure
Product introduction:
UAMZ90 series motor mainly applied to the glass processing industry, glass edge grinding, glass shaping filed. Specialized for glass edge straightening machinery.
1, Use high accuracy bearings, axial float & radial run-out ≤ 0.01mm, 100% products passed dynamic balance detection, ensured low vibration and low temperature rising.
2, Grinding head direct connected to the motor, powerful!
3, The motor coil is dipped in vacuum environment, Class F insulation, longer lifespan.
4, Special water proof design sealing structure, with high temperature resistant materials, specialized for all kinds of working site.
5, Voltage: 380V/50HZ (Various voltage&frequency are available, 415V/380V/240/230V/220V/120V/110V, 50HZ/60HZ)
UAMZ90 Series motor Technical Parameters:
|
Model |
Rated Power (Kw) |
Rated Voltage (V) |
Rated Frequency (HZ) |
Rated Current (A) |
Rated Torch (N.m) |
Rated Speed (rpm) |
Efficiency (η) |
Power Factor
|
TS/TN
|
TMAX/TN |
IS/IN
|
Weight (Kg) |
|
UAMZ90S-2P-1.5 |
1.5 |
380 |
50 |
3.2 |
5.1 |
2810 |
78.2% |
0.9 |
1.9 |
2.1 |
5.0 |
24 |
|
UAMZ90L-2P-2.2 |
2.2 |
380 |
50 |
4.6 |
7.4 |
2820 |
79.5% |
0.81 |
2.6 |
2.5 |
6.0 |
24.5 |
|
UAMZ90L-4P-1.5 |
1.5 |
380 |
50 |
3.6 |
10.3 |
1390 |
78% |
0.82 |
2.5 |
2.2 |
5.5 |
24.5 |
|
Electric Input: AC/380V/50HZ/3PHASE(Customized Service is available) Protection Level: IP54/Working Mode: S1/Insulation Class: F/Cooling mode: IC411/Noise70/Vibration Level:N |
||||||||||||
Pre-sale service
We provide presales in our first cooperation, make clear your situation and give you some advice. We would give you a better ideal
if you need. We will give the details to each customer for reference, including the dimension, performance, quality and price level.
For drawings, Our R & D team is professianal enough.
In-sale service
Once we receive the order list, we will confirm the exact model and quantity one by one, then place the order list to our factory.
We will tracking the production progress and quality before delivering. Because we’re manufacturer, so our leading time is more
shorter, quality tracking is more strict.
After-sale service
We provide after-sales service within 18 months after the products are manufactured. In addition, we also provide sales
service for spare parts. If you have any questions, please contact us.
