Three Phase Grinding Machine Motor 10kw Single Edge Glass Processing Industry

Place of Origin Shanghai, China
Brand Name CDQC
Certification CE
Model Number UAMZ90
Price Negotiate
Packaging Details waterproof film & CDQC carton.
Supply Ability 150000 Set/Sets per Month
Product Details
Color As Required Usage Universal
Function Driving Phase Three Phase
Speed Constant Speed Shape Linear
Power AC Protect Feature Enclosed And Waterproof
Structure Other Port Shanghai
High Light

high efficiency electric motor


grinder motor


three phase grinding machine motor

Leave a Message
Product Description

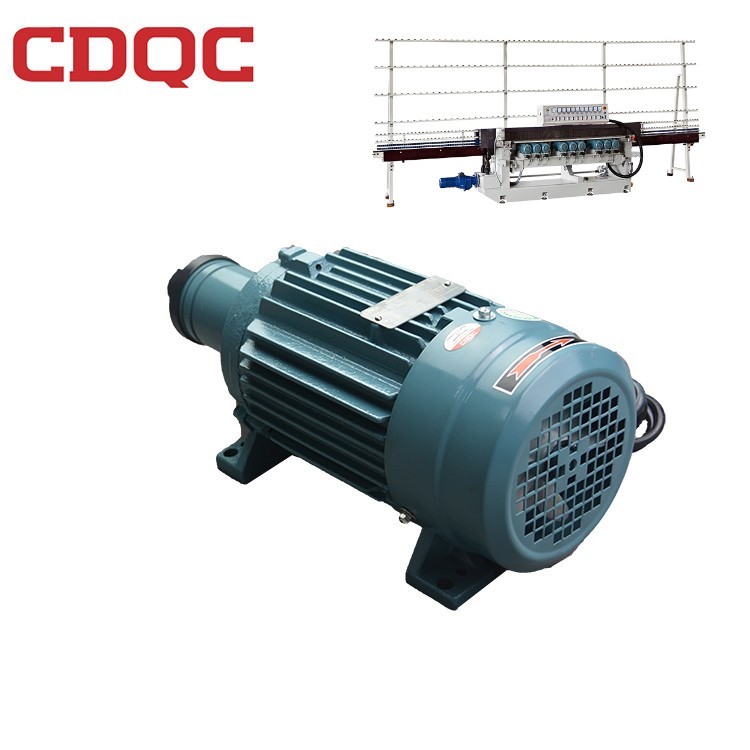

Three phase Ac induction motor 10kw single edge glass processing industry.


Product introduction


UAMZ90 series 8hp electric motor mainly applied to the glass processing industry, glass edge grinding, glass shaping filed. Specialized for glass edge straightening machinery.

1, Use high accuracy bearings, axial float & radial run-out ≤ 0.01mm, 100% products passed dynamic balance detection, ensured low vibration and low temperature rising.

2, Grinding head direct connected to the 8hp electric motor, powerful!

3, The 8hp electric motor coil is dipped in vacuum environment, Class F insulation, longer lifespan.

4, Special water proof design sealing structure, with high temperature resistant materials, specialized for all kinds of working site.

5, Voltage: 380V/50HZ (Various voltage&frequency are available, 415V/380V/240/230V/220V/120V/110V, 50HZ/60HZ)



UAMZ90 Series 8hp electric motor Technical Parameters







Rated Voltage


Rated Frequency


Rated Current










Power Factor









UAMZ90S-2P-1.5 1.5 380 50 3.2 5.1 2810 78.2% 0.9 1.9 2.1 5.0 24
UAMZ90L-2P-2.2 2.2 380 50 4.6 7.4 2820 79.5% 0.81 2.6 2.5 6.0 24.5
UAMZ90L-4P-1.5 1.5 380 50 3.6 10.3 1390 78% 0.82 2.5 2.2 5.5 24.5

Electric Input: AC/380V/50HZ/3PHASE(Customized Service is available)

Protection Level: IP54/Working Mode: S1/Insulation Class: F/Cooling mode: IC411/Noise70/Vibration Level:N
