Permanent Magnet Induction Motor / High Speed Glass Grinding Motor 2.2kw

Place of Origin China Shanghai
Brand Name CDQC
Certification CCC CE
Model Number Grinding Motor
Minimum Order Quantity Negotiable
Price Negotiate
Product Details
Usage Glass Edging Color Black
Working Mode S1 Power 3kw
Rated Speed 2910r/min Efficiency 84.6
High Light

960 rpm induction motor


multi speed induction motor

Leave a Message
Product Description

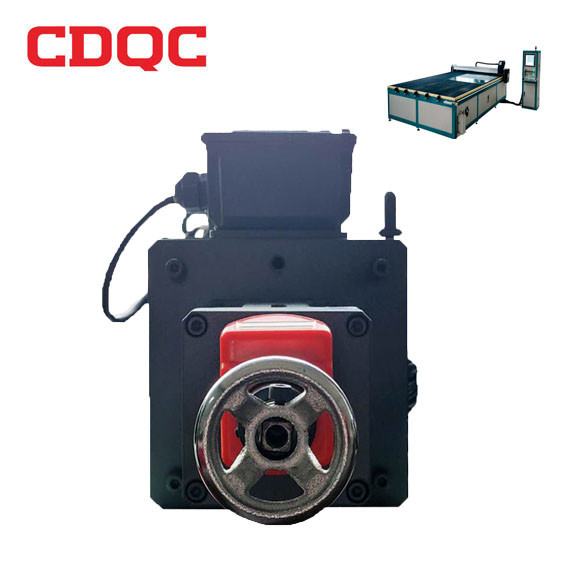

UMTG Series Permanent Magnet Induction Motor / High Speed Glass Grinding Motor 2.2kw


Product Introduction


UMTG Series direct drive grinding motor is new generation product with high rpm speed&high precision advantages, Designed and produced by


CDQC. Mainly used for glass deep processing industry or some other intelligent digital control axial-drive equipment.


UMTG is a revolutionary grinding motor, it integrated an adjustable axial rotor and a mini servo motor, the shaft could stretch out and draw back,


controlled by PLC units, don’t need extra sliding systems. The rotor will drive the grinding head directly, without extra transmission belt or chain. It


have many characters such as energy saving, efficiency, high rpm speed, and high precision advantages. Among them, the technology of axial


drive and support of axial movement, axial cushioning and damping, dust proof and waterproof sealing of shaft head etc., CDQC is the inventor


and international leader in integrated innovation of direct drive grinding head motor area!


Brief Specification


Rated Power 3.0kW
Rated Voltage 380V
Reference Frequency 50Hz
Working Mode S1
Insulation Level F
Protection Grade IP55



Product Character


Structure:Integrated structure, abandon traditional sliding axial movement method, enhance stability, energy saving, efficiency and precision.


High Accuracy: Only the rotor move out&in, the motor is fixed. Much more reduced axial drive power, The precision less than 0.02mm, has


reached global similar products advance level!


Longer lifespan: CDQC designed special support structure, use sleeve+bearing+rotor structure to protect the rotor, longer life span and easy




Permanent Synchronous Motor:The permanent magnet eliminates the loss of ordinary excitation system and improves the efficiency.At the


same time, the permanent magnet materials makes the motor more energy efficient, smaller and lighter.




deriction:glass deep processing machinery.




1. We provide presales in our first cooperation, make clear your situation and give you some advice. We would give you a better ideal if you


need. We will give the details to each customer for reference, including the dimension, performance, quality and price level. For drawings,


Our R & D team is professianal enough.

2. Once we receive the order list, we will confirm the exact model and quantity one by one, then place the order list to our factory. We will
tracking the production progress and quality before delivering. Because we’re manufacturer, so our leading time is more shorter, quality tracking
is more strict.
3. We provide after-sales service within 18 months after the products are manufactured. In addition, we also provide sales service
for spare parts. If you have any questions, please contact us.
Customer satisfaction is our greatest success, the customer's goal is our eternal pursuit.



CDQC specializes in the research and development, manufacturing, sales and service of various types of motors, covering an area of 20,000 square meters and having nearly 200 formal staff. We have a professional research and development team. They are constantly committed to the development and innovation of motor technology and our staff accepting serious training can use advanced motor testing platform and other professional testing equipment so that the quality of products have greatly improved. We have to ensure to provide customers with the highest quality and the most credible motor for their machine. At present, CDQC has developed into a new energy transmission base integrating materials, industry and trade.
