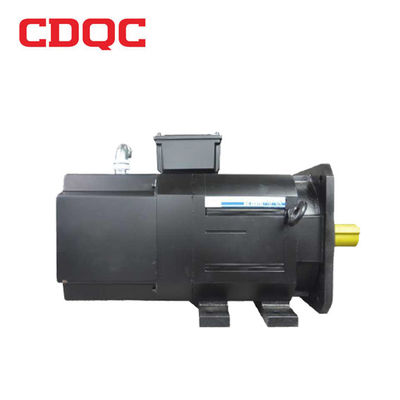

IP55 Waterproof Asynchronous Servo Motor Three Phase 380V 33.3/50hz
| Place of Origin | Shanghai |
|---|---|
| Brand Name | CDQC |
| Certification | CE |
| Model Number | UBS |
| Price | Negotiate |
| Packaging Details | waterproof film & CDQC carton |
Product Details
| Frequency | 33.3/50HZ | Ac Voltage | 380V |
|---|---|---|---|
| Protect Feature | Waterproof,IP55 | Rated Torque | 24.5N.m - 120.7N.m |
| Phase | Three-phase | Color | CDQC Colour |
| Port | Shanghai | ||
| High Light | ip55 waterproof asynchronous servo motor,asynchronous servo motor three phase,cdqc colour asynchronous servo motor |
||
Product Description
UBS Series Three-Phase Permanent-Magnet Synchronous Motor
UBS series AC servo spindle motor is design for textile and machine tool industry and other machines. It can solve the problem of speed fluctuation caused by uneven load, work with servo drives and frenquency converters.
1. Sometimes the power can be run for a short period of time ( within 30min).
2. Special inertia design made speed more swift than ordinary motor.
3. Max torque is 8000rpm.
4. Class F Insulation, IP55Protection
5. Constant The system noise is far below the national standard.
Product introduction:
| Model | Rated Power (KW) | Rated Voltage (V) | Rated Frenquency (HZ) | Rated Current (A) | Rated Torque (N.m) | Synchronous Speed (r/min) | Max Speed (r/min) | Driving Inertia (kgm㎡) | Fan Voltage (V) |
| UBS132S1-4 | 3.7 | 380 | 50 | 8.0 | 24.5 | 1500 | 8000 | 0.01259 | 200 |
| UBS132S2-4 | 5.5 | 11.7 | 36.3 | 0.01819 | |||||
| UBS132M1-4 | 7.5 | 15.5 | 49.5 | 0.02519 | |||||
| UBS132M2-4 | 5.5 | 33.3 | 11.9 | 55.6 | 1000 | 0.02519 | |||
| UBS132M3-4 | 9.5 | 50 | 19.7 | 62.0 | 1500 | 0.03009 | |||
| UBS160M1-4 | 9.5 | 18.9 | 62.0 | 0.04752 | 380 | ||||
| UBS160M2-4 | 11 | 21.8 | 71.9 | 0.05703 | |||||
| UBS160L1-4 | 15 | 29.3 | 98.1 | 0.06971 | |||||
| UBS160L2-4 | 18.5 | 36.5 | 120.7 | 0.08238 |
Pre-sale service
We provide presales in our first cooperation, make clear your situation and give you some advice. We would give you a better ideal
if you need. We will give the details to each customer for reference, including the dimension, performance, quality and price level.
For drawings, Our R & D team is professianal enough.
In-sale service
Once we receive the order list, we will confirm the exact model and quantity one by one, then place the order list to our factory.
We will tracking the production progress and quality before delivering. Because we’re manufacturer, so our leading time is more
shorter, quality tracking is more strict.
After-sale service
We provide after-sales service within 18 months after the products are manufactured. In addition, we also provide sales
service for spare parts. If you have any questions, please contact us.
