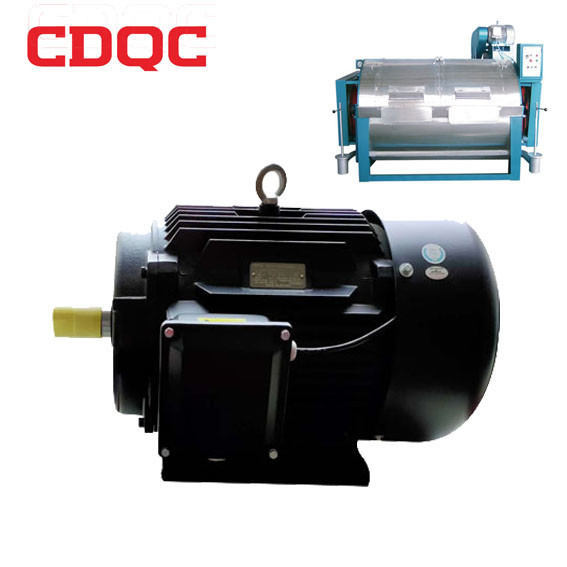

Frequency Conversion Variable Frequency Induction Motor For 15-200KG Washing Machine
| Place of Origin | China Shanghai |
|---|---|
| Brand Name | CDQC |
| Certification | CCC CE EMC |
| Model Number | UABPD Variable Washing motor |
| Price | Negotiate |
| Packaging Details | waterproof film & CDQC carton. |
| Delivery Time | 10~35days |
| Payment Terms | T/T , L/C， Negotiates |
| Supply Ability | 8000sets per month |
Product Details
| Product Name | Washing Frequency Conversion Motor | Usage | Washing Machine |
|---|---|---|---|
| Duty | S1 (continuous) | Power | 0.75KW-30KW |
| Warranty | 18 Months | Phase | 3 |
| Color | Preferred Black | ||
| High Light | vfd electric motor,high frequency induction motor,IEC washing machine induction motor |
||
Product Description
Industrial Variable Speed AC Motor UABPD Series IP54 Protection Level
PRODUCT INTRODUCTION:
UABPD Series motors specialized apply for industry of industrial washing machine, standard variable frequency motor, stable, universality, cost-efficiency.
Product Features:
1, Universality- IEC Standard Variable Frequency motors,
2, High efficiency-Specialized for washing machine, powerful torque, Low speed.
3, Stable-adopted mature technology design, classic models.
4, High overload capacity. 150% max to 1 min.
5, Compact structure, smaller size.
6, Wide adjustment range of constant power.
7, Reliable quality, Class F insulation, IP54 Protection level.
Product Specifications
Rated Power: 0.37Kw-30Kw
IEC Standard
Reference speed: 750/1000/1500/3000/4500(r/min)
Stable design, Insulation F grade, IP54 Protection level.
Max Constant power: Minimum Constant power =1:3~1:4
Optional Parts: Encoder, Thermal protector
UABPD Series motor Technical Parameters:
| Model | 90L-4P | 100L-4P | 100L-6P | 112M-6P | 132S-4P | 132M-4P | 160M-4P | 160L-4P | 160L-4P | 180M-4P | 200L-6P |
| Rated Power | 1.5 | 2.2 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 22 |
| Rated Curren | 3.8 | 5 | 4.5 | 6.2 | 10 | 15 | 18 | 23 | 32 | 38 | 55 |
| Rated Torque | 8.5 | 12.4 | 12.7 | 18.6 | 40.35 | 53.8 | 72.95 | 99.48 | 110 | 191 | 210 |
| Referenced Speed | 1800 | 1200 | 750 | 1000 | 750 | 1500 | |||||
| Rated Voltage | 380 | 330 | 330 | 380 | |||||||
| Control Mode | V/F, Vector control | ||||||||||
| Overload Capacity | 150%, 1 min | ||||||||||
| Insulation Level | Class F Insulation | ||||||||||
| Cooling Mode | IC416 | ||||||||||
| Vibration Level | R | ||||||||||
COMPANY INTRODUCTION
CDQC specializes in the research and development, manufacturing, sales and service of various types of motors, covering an area of 20,000 square meters and having nearly 200 formal staff. We have a professional research and development team. They are constantly committed to the development and innovation of motor technology and our staff accepting serious training can use advanced motor testing platform and other professional testing equipment so that the quality of products have greatly improved. We have to ensure to provide customers with the highest quality and the most credible motor for their machine. At present, CDQC has developed into a new energy transmission base integrating materials, industry and trade.
