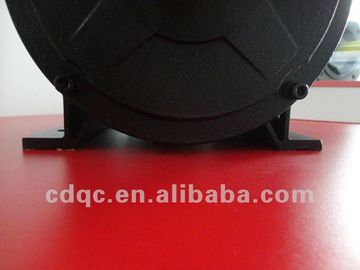

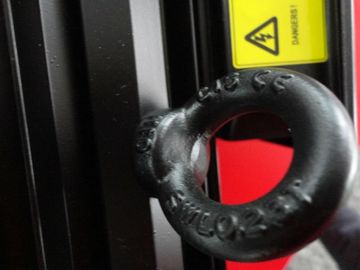

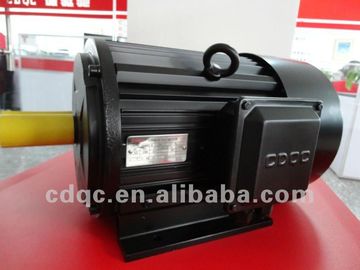

CDQC Vfd Electric Motor , AC Electric Motor Waterproof For Washing Machine

  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Shanghai, China
Brand Name CDQC
Certification CCC, CE
Model Number UABPD
Price Negotiate
Packaging Details waterproof film & CDQC carton.
Supply Ability 150000 Set/Sets per Month
Product Details
Type Induction Motor Frequency 25Hz 50Hz 60Hz
Protect Feature Waterproof, Enclosed And Waterproof Phase Three-phase, Three Phase
AC Voltage 220-240 V 330/380V Efficiency IE 3
Usage Washing Machine Color Customers' Request
Warranty 18 Months Speed Constant Speed
Duty S1 (continuous) Power 0.75KW-30KW
Protection Class IP54 Housing Cast Iron
Port Shanghai
High Light

high frequency induction motor

,

vfd induction motor
Leave a Message
Product Description
Product Description
UABPD Series motors specialized apply for industrial washing machine. Additional encoders and inverters are available as required.
CDQC Vfd Electric Motor , AC Electric Motor Waterproof For Washing Machine 0
rate power
0.75KW-30KW
certifications
CCC CE EMC
rate speed
750/1000/1500/3000r/m
protection level

IP54/IP55
Max Speed
4500r/m
approve
Encoders, thermal protectors, frequency converters


  • Product Features
1, Universality- IEC Standard Variable Frequency motors,
2, High efficiency-Specialized for washing machine, powerful torque, Low speed.
3, Stable-adopted mature technology design, classic models.
4, High overload capacity. 150% max to 1 min.
5, Compact structure, smaller size.
6, Wide adjustment range of constant power.
7, Reliable quality, Class F insulation, IP54 Protection level.


  • Product Specifications

Product Specifications
Rated Power: 0.37Kw-30Kw
IEC Standard
Reference speed: 750/1000/1500/3000/4500(r/min)
Stable design, Insulation F grade, IP54 Protection level.
Max Constant power: Minimum Constant power =1:3~1:4
Optional Parts: Encoder, Thermal protector

Size Information
Size Chart of This Design
model
132S-4P
132M-4P
160L-4P
160L-4P
200L-6P
washing machine/kg
30
50
100
120
200
power/kw
3
4
7.5
11
22

After Sales Service
We provide after-sales service within 18 months after the products are manufactured. In addition, we also provide sales service for spare parts.If you have any questions, please feel free to contact us.
Company Introduction
Shanghai CDQC Electric Co., Ltd, established in 2005 covering an area of 20000 square meters with more than 200 employees. We've got great achievements in the glass grinding fields, laundry industry, textile industry and printing industry so that our motors have a good marketing share in China. We also keep cooperation with some domestic
leading companies.We are actively expanding our business scope.,
