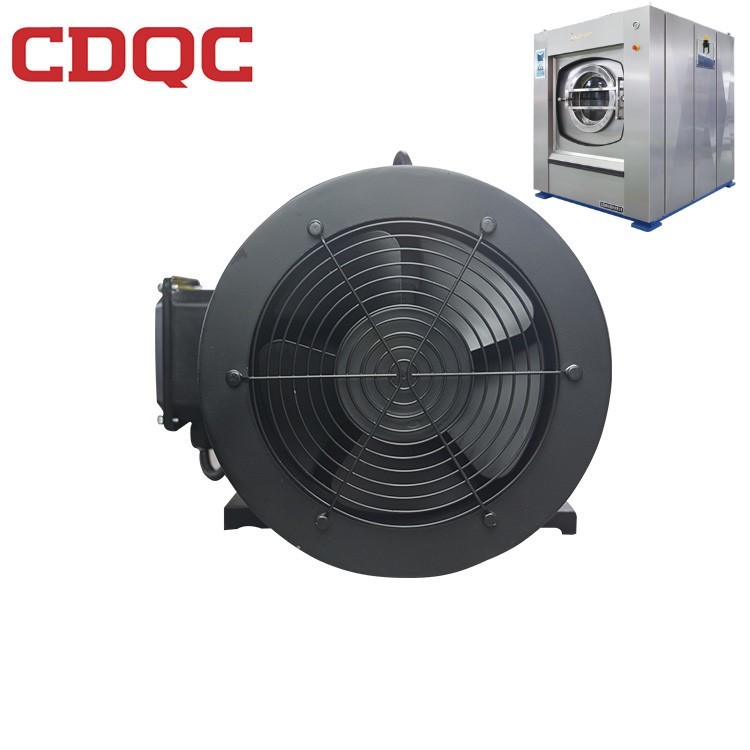

High Reliability Multi Speed Electric Motor , Variable Rpm Electric Motor
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CDQC |
| Certification | CE |
| Price | Negotiate |
| Packaging Details | waterproof film & CDQC carton. |
| Supply Ability | 150000 Set/Sets per Month |
Product Details
| Color | As Required | Usage | Universal |
|---|---|---|---|
| Function | Driving | Phase | Three Phase |
| Speed | Constant Speed | Shape | Linear |
| Power | AC | Protect Feature | Enclosed And Waterproof |
| Structure | Other | Port | Shanghai |
| High Light | vsd electric motor,multi speed electric motor,IP55 variable frequency induction motor |
||
Product Description
High Reliability Multi Speed Electric Motor , Variable Rpm Electric Motor
PRODUCT INTRODUCTION:
|
Product Name
|
variable frequency induction motor
|
|
Ambient Temperature
|
-15℃~40℃
|
|
Altitude
|
Less than 1000m
|
|
Frequency
|
50Hz, 60 Hz or customized
|
|
Voltage
|
380V, 660V or customized
|
|
Insulation class
|
F
|
|
Protection class
|
IP55
|
|
Centre height of frame
|
80~355
|
|
Duty
|
Continuous
|
|
Motor Enclosure Design
|
Totally Enclosed
|
|
Frame material
|
Cast Iron
|
|
Appearance color
|
Green/Grey/Black/Blue/customized
|
UABPD Series motors specialized apply for industry of industrial washing machine, standard variable frequency motor, stable, universality, cost-efficiency.
Product Features:
1, Universality- IEC Standard Variable Frequency motors,
2, High efficiency-Specialized for washing machine, powerful torque, Low speed.
3, Stable-adopted mature technology design, classic models.
4, High overload capacity. 150% max to 1 min.
5, Compact structure, smaller size.
6, Wide adjustment range of constant power.
7, Reliable quality, Class F insulation, IP54 Protection level.
Product Specifications
Rated Power: 0.37Kw-30Kw
IEC Standard
Reference speed: 750/1000/1500/3000/4500(r/min)
Stable design, Insulation F grade, IP54 Protection level.
Max Constant power: Minimum Constant power =1:3~1:4
Optional Parts: Encoder, Thermal protector
UABPD Series motor Technical Parameters:
| Model | 90L-4P | 100L-4P | 100L-6P | 112M-6P | 132S-4P | 132M-4P | 160M-4P | 160L-4P | 160L-4P | 180M-4P | 200L-6P |
| Rated Power | 1.5 | 2.2 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 22 |
| Rated Curren | 3.8 | 5 | 4.5 | 6.2 | 10 | 15 | 18 | 23 | 32 | 38 | 55 |
| Rated Torque | 8.5 | 12.4 | 12.7 | 18.6 | 40.35 | 53.8 | 72.95 | 99.48 | 110 | 191 | 210 |
| Referenced Speed | 1800 | 1200 | 750 | 1000 | 750 | 1500 | |||||
| Rated Voltage | 380 | 330 | 330 | 380 | |||||||
| Control Mode | V/F, Vector control | ||||||||||
| Overload Capacity | 150%, 1 min | ||||||||||
| Insulation Level | Class F Insulation | ||||||||||
| Cooling Mode | IC416 | ||||||||||
| Vibration Level | R | ||||||||||
